Ravenna fluted stone wall panel, isometric view
Reference visual. Final panel size and stone are project-specific.

SGF-114

RavennaOrganic Stone Fluting Pattern

Long sweeps and two tight coves composed as one motif, centred on the panel. Suited to a single feature panel or stone wall art.

This organic stone fluting pattern is part of our stone fluting designs & patterns collection for fluted wall panels.

Pattern
Organic
Panel size
2,000 × 3,000 mm
Orientation
Vertical or horizontal
Reference thickness
20 mm
Internal radius
From 1.5 mm

Request informationRequest 2D file

Want to visit our factory in Kishangarh?

Explore Ravenna in 3D

Rotate and zoom to explore the actual profile of this stone fluting design.

Interactive stone panel preview

The model loads only when you choose to view it.

Illustrative 600 mm-long 3D sample made from the verified surface-profile drawing. Material and colour shown are representative; final panel dimensions and finish are project-specific. Drawings for manufacturing are available on request.

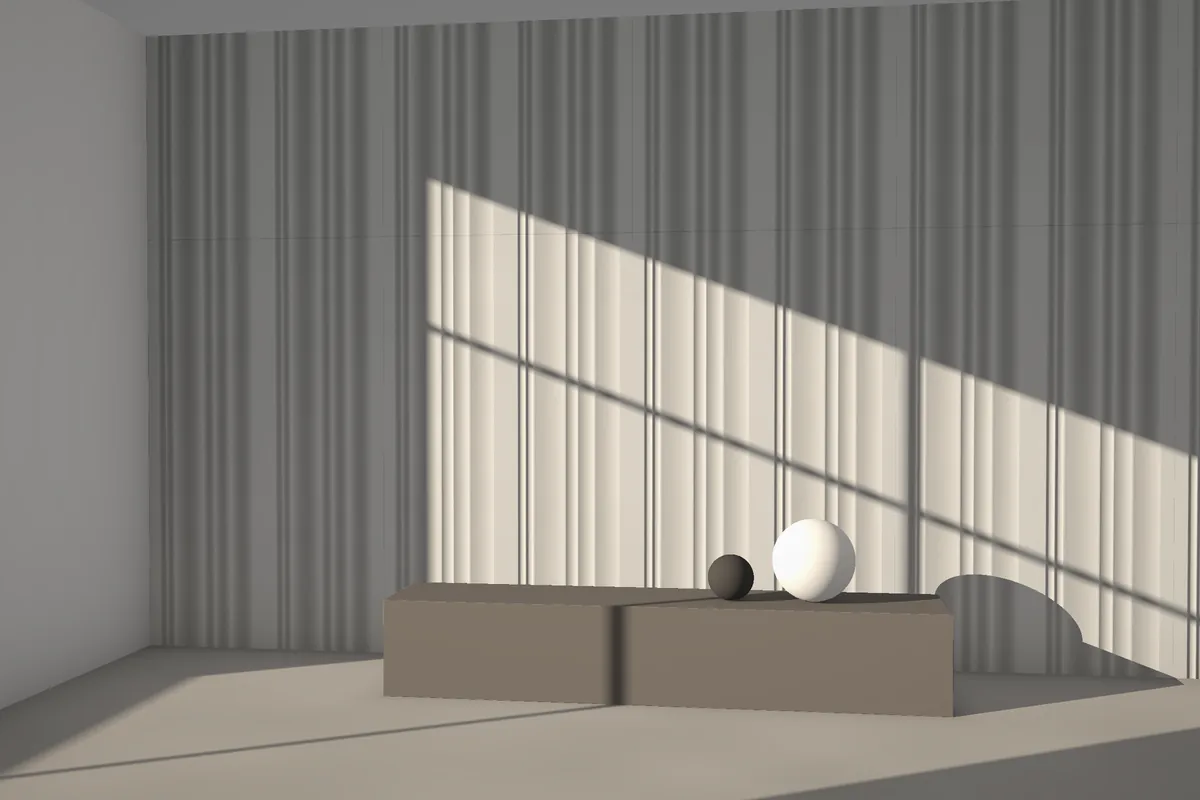

Ravenna on a feature wall

Application visualisation for the selected fluting profile. Final colour and grain depend on the stone selected.

Ravenna fluted stone wall cladding on a feature wall in daylight, visualised in grey granite

Views and section

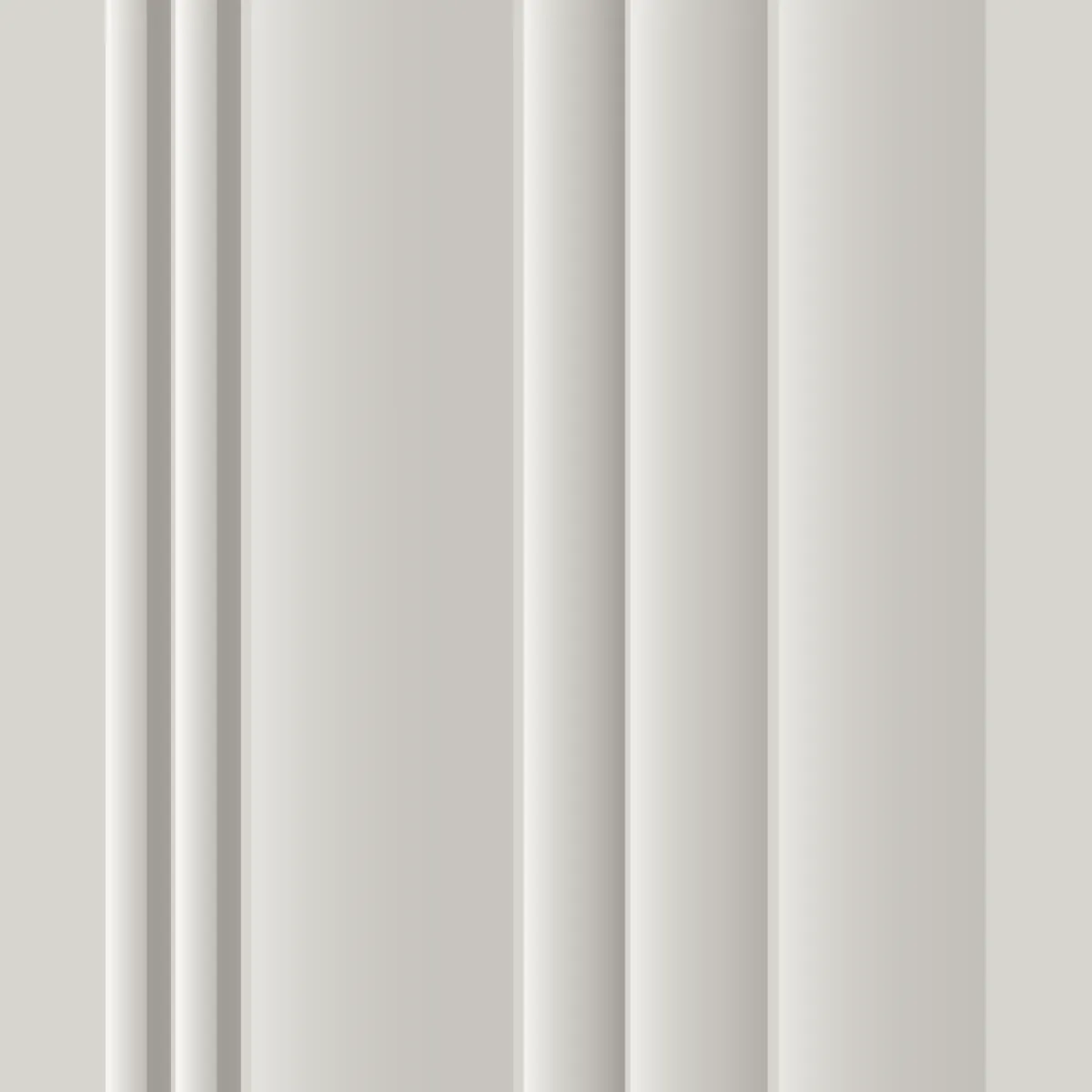

Ravenna fluted wall panel, front view
Front view

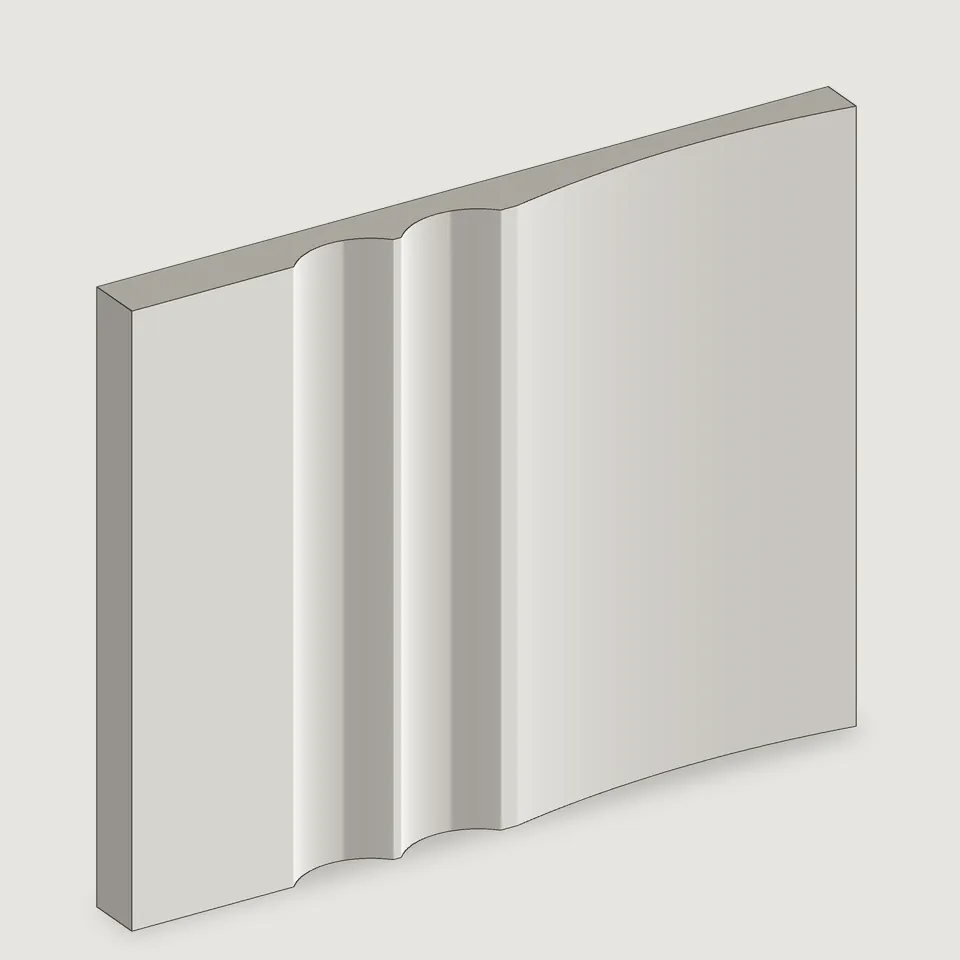

Carved edge of the Ravenna fluted stone panel
Carved edge / profile
Section across the Ravenna panel
Technical section

Dimensioned 2D section, DXF or PDF

Available on request for your drawings and specification.

Request 2D file

Stones you can choose from

This profile can be produced in the materials selected in the CMS.

About Ravenna

Long sweeps and two tight coves composed as one motif, centred on the panel. Suited to a single feature panel or stone wall art.

Pattern
Organic fluting
Maximum panel size
3000 × 2000 mm
Orientation
Vertical or horizontal
Minimum internal radius
1.5 mm
2D section file
DXF or PDF on request
Panel size
Any size, up to 3 × 2 m
Use
Interior walls and exterior cladding
Customisable
Profile, depth and rhythm

Granate Gallery · Kishangarh, Rajasthan

Want to see this design in person?

Visit our Kishangarh unit to discuss Ravenna, compare available stones and finishes, and review sample possibilities with our team.

Arrange a factory visit Or call +91 90000 00000

Visits by appointment. We'll confirm which samples are available before you come.

Request information

Tell us what you need: price, the 2D file, a sample or a factory visit. The design is attached to your request.

SGF-114

Ravenna

Prefer WhatsApp? Message +91 90000 00000
